Description

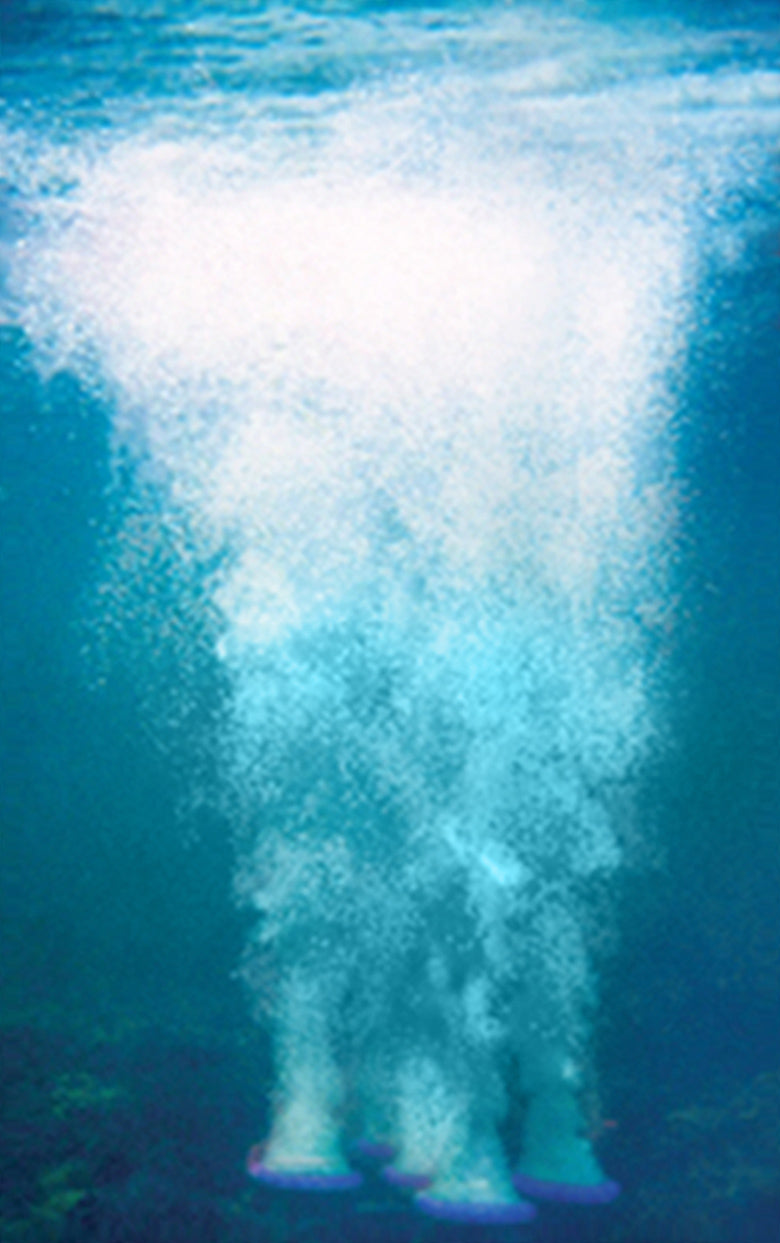

Vertex diffused aeration systems are super-efficient, affordable and safe. The rising force of millions of bubbles transports bottom water to the surface, allowing oxygen to be absorbed and circulating the entire water column.
Large Lake High Efficiency 33 - LL HE33:
- 4 Horsepower Total
- 230 Volt Power Configuration
- 33CFM Air Output
- AirStations sold separately: Choose how many(up to 8) and what style
- Tubing sold separately: Choose desired amount of tubing (available in 50' and 100' rolls, and 250' and 500' spools)
- Optional: VBS with remote valve box
Benefits to the lake:
- High pumping rate easily penetrates stratification layers
- Promotes beneficial bacteria growth
- Prevents low oxygen fish kills
- Reduces nutrient levels and associated algae growth
- Oxidizes/reduces bottom muck
- Expands oxygenated habitat for improved fisheries
- Reduces aquatic midge and mosquito insect hatches
- Eliminates foul odors from undesirable dissolved gases
Large Lake Quietair™ Cabinet:
- Limited lifetime warranty against rust
- Powder coated aluminum for a durable attractive finish
- Equipped with a stamped ventilation grill
- High capacity 140 CFM fan
- Class "A" GFCI Protection on compressor and fan circuits
- Quick disconnect switch included
- Easy access design with cam lock
- Easy plug-in connection to waterside electrical service
- Heavy duty, light weight mounting pad included
- Optional muffler box and additional insulation
Bottomline Supply Tubing:
- Available in 50' or 100' rolls, and 250' or 500' spools
- Self-weighted for easy installation
- Flexible PVC composite direct burial and submersible tubing
- High wall thickness for durability and protection from punctures
- Remains flexible in cold temperatures.
- Over-sized I.D. for high flow

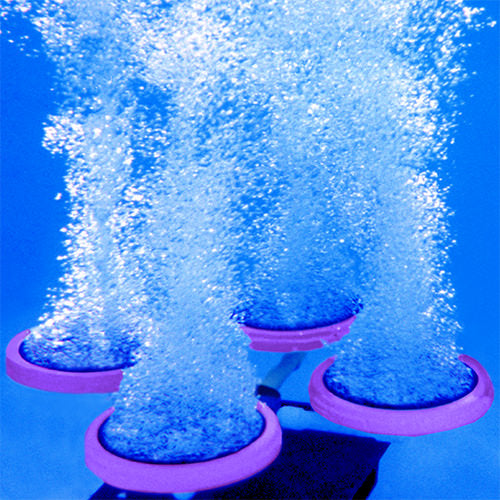

AirStation Disks:
- 9" diameter, flexible membrane diffuser discs
- Self-cleaning, low maintenance
- Flexible, long-wearing and clog resistant even in the dirtiest waterbodies
- StableTrak™ technology increases lift velocity
Self-Sinking AirStation: XL1, XL2, XL2SW:
- Made of powder-coated stainless steel
- Designed to prevent settling into soft bottom sediments.
- Adjustable diffuser risers accommodate any site requirements
Standard AirStation: XL4, XL5:
- Vacuum-formed HDPE base, spot-welded for unit integrity
- Hollow chamber design for the addition of gravel ballast
- Lipped design prevents settling into soft bottom sediments.
