Description
The Vertex® Air 1Plus XL2™ Aeration Systems are extremely efficient. The rising force of millions of bubbles transport bottom water to the surface, allowing oxygen to be absorbed as well as circulating and mixing the water column.
The Air 1Plus XL2™ Aeration systems are ideal for rectangular or oblong shaped ponds up to two surface acres and 45 ft deep depending on the shape, slope, and oxygen demand. Available in 115 or 230 volts
*NOTE: Vertex™ Aeration systems utilize 3/8" I.D. self weighted tubing for all runs 300' or less. Any single tubing run that is greater than 300' must utilize the larger 0.58" I.D. tubing. Larger tubing can be found here(in 50' or 100' pre-cut rolls): 0.58" I.D. Self-Weighted Aeration Tubing
- Circulates up to 6,700 GPM (gallons per minute)
- High pumping rate easily penetrates stratification layers
- Promotes beneficial bacteria growth
- Prevents low oxygen fish kills
- Reduces nutrients levels and associated algae growth
- Decreases pond bottom sediment
- Expands oxygenated habitat for improved fisheries
- Lessens aquatic midge and mosquito insect hatches
- Eliminates foul odors from undesirable dissolved gases
- Equipped with a stamped ventilator grill
- Built for continuous 24/7 operation
- 2.5 CFM output
- Thermal overload protection
- Air Station Diffusers are made of EPMD compound with 100% rebound memory, they are clog-resistant even in the dirtiest water bodies
Technical Specifications

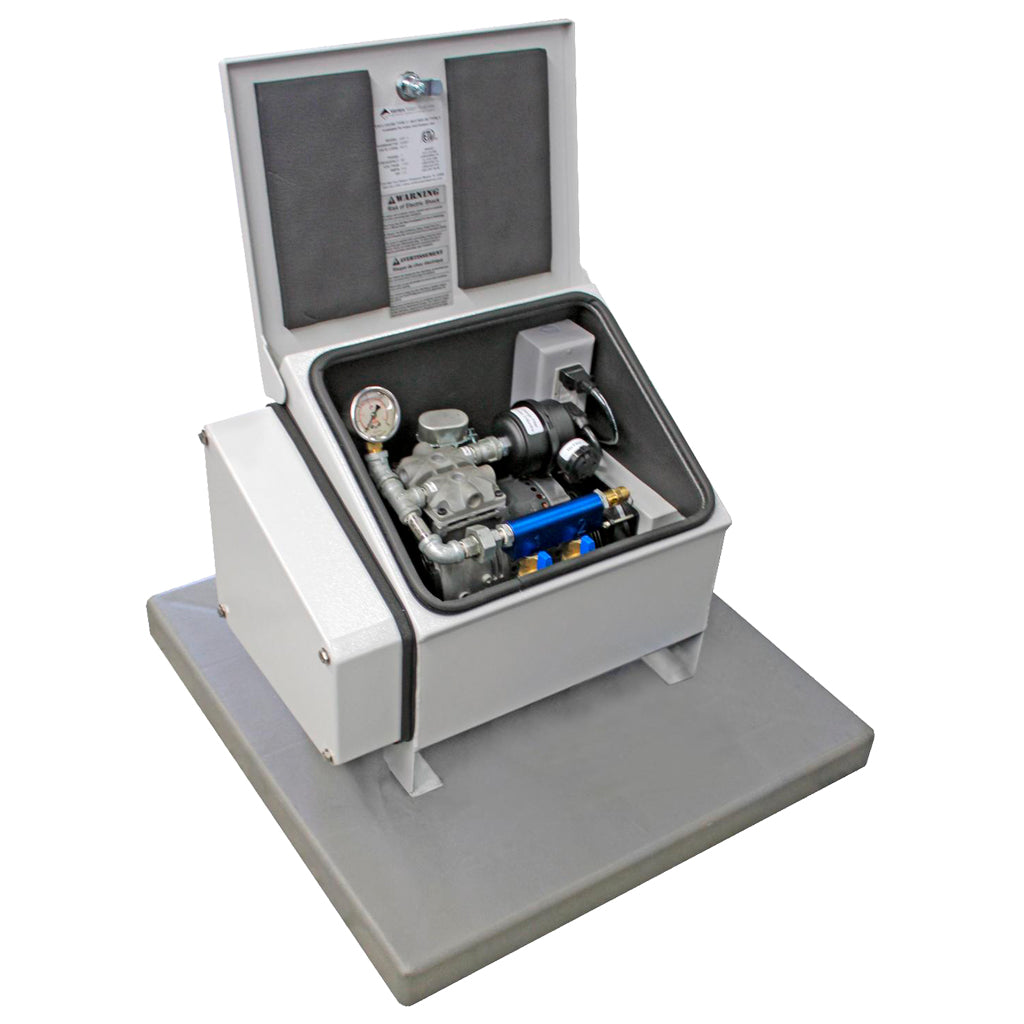

The Vertex® Air 1 Plus XL2™ Aeration System comes complete with:
1/3HP, 115-V or 230-V Brookwood continuous duty piston compressor
Powder Coated, Aluminum Cabinet
140 CFM Cooling Fan
Heavy-Duty Cabinet Mounting Pad
Class "A" G.F.C.I. Protection on Compressor and Fan Circuit
Two, XL2 CoActive Air Station with dual head, self-cleaning, clog-resistant membrane diffusers.
Dual-valved aluminum control manifold
Industry Leading 3 Year Compressor, 5 Year Air-Station/Diffuser, and Lifetime Aluminum Cabinet Manufacturer's Warranty.
Optional Sound Reduction Kits are available for this system for whisper-quiet operation. Vertex® aeration systems are the quietest systems available. A sound reduction kit is not needed unless the system will be placed within a sensitive area.
Product Manual
