Description

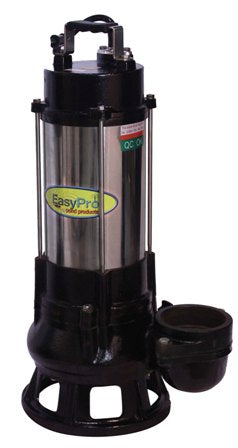

TB Series™ high-performance submersible pumps from EasyPro® are perfect for high head streams and waterfalls. Their compact design and unmatched durability allows for use in large skimmers or pump vaults in continuous duty pond and water feature applications.
TB Series™ High Head, Stainless Steel Submersible Pumps by EasyPro® are the best choice for water features above 20′.
- 3″ outlets with 20′ power cords and thermal overload protection
- Top quality Japanese double mechanical seals – over 100,000 hour life expectancy
- 230 volt (1 hp available in 230v or 115v)
- Designed for use with higher head pressure
- Applications: A minimum of 20′ head pressure required for TB12000 and TB14500, use ball valve to create back pressure if system has less than 20′ head pressure
TB8000 - 8000 GPH (115 Volt)
|
Max Flow Rate
|
8000 gph
|
|
Power Cord Length
|
20′
|
|
Horsepower
|
1hp
|
|
Voltage
|
115v
|
|
Amps
|
11
|
|
Maximum Head
|
40′
|
|
Outlet
|
3″
|
|
Warranty
|
2 years
|
|
Weight
|
43lbs
|
TB8002 - 8000 GPH (230 Volt)
|
Max Flow Rate
|
8000 gph
|
|
Power Cord Length
|
20′
|
|
Horsepower
|
1hp
|
|
Voltage
|
230v
|
|
Amps
|
5.5
|
|
Maximum Head
|
40′
|
|
Outlet
|
3″
|
|
Warranty
|
2 years
|
|
Weight
|
43lbs
|
TB12000 - 12000 GPH (230 Volt)
|
Max Flow Rate
|
12000 gph
|
|
Power Cord Length
|
20′
|
|
Horsepower
|
2hp
|
|
Voltage
|
230v
|
|
Amps
|
9.7
|
|
Maximum Head
|
60′
|
|
Outlet
|
3″
|
|
Warranty
|
2 years
|
|
Weight
|
68 lbs
|
TB14500 - 14500 GPH (230 Volt)
|
Max Flow Rate
|
14500 gph
|
|
Power Cord Length
|
20′
|
|
Horsepower
|
3hp
|
|
Voltage
|
230v
|
|
Amps
|
14.5
|
|
Maximum Head
|
72′
|
|
Outlet
|
3″
|
|
Warranty
|
2 years
|
|
Weight
|
74 lbs
|
