Description
Complete aeration system for ponds up to three acres depending on shape and depth of pond. 3/4 hp Rocking Piston SRC75 compressor, 6.5 cfm, 4.5 amps, aerates up to 50′ deep. The PA83W kit also includes three QS2 Quick Sink air diffusers, three valved outlet assembly with pressure relief valve, 300′ of 3/8″ Quick Sink tubing, fittings and clamps.
This system will effectively aerate:
- 3/4 Acre Pond at 5'-8' Deep
- 1.5 Acre Pond at 8'-12' Deep
- 3 Acre Pond at 12'-16' Deep
PA83W (No Cabinet) features:
- SRC75 Stratus™ SRC 3/4 hp Air Compressor
- Three valve manifold with pressure relief
- Valved outlet with heat reducing hose and 3/8″ connections
- Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 300′ of 3/8″ QuickSink weighted tubing
- PA83W requires weather protection for the compressor (Available for purchase with cabinet, or without. If you choose the system without cabinet, you will need to provide your own protective housing to shield the compressor from the weather.)
- Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary.
- 2-Year Warranty on Compressor, 5-Year Warranty on Tubing and Diffuser

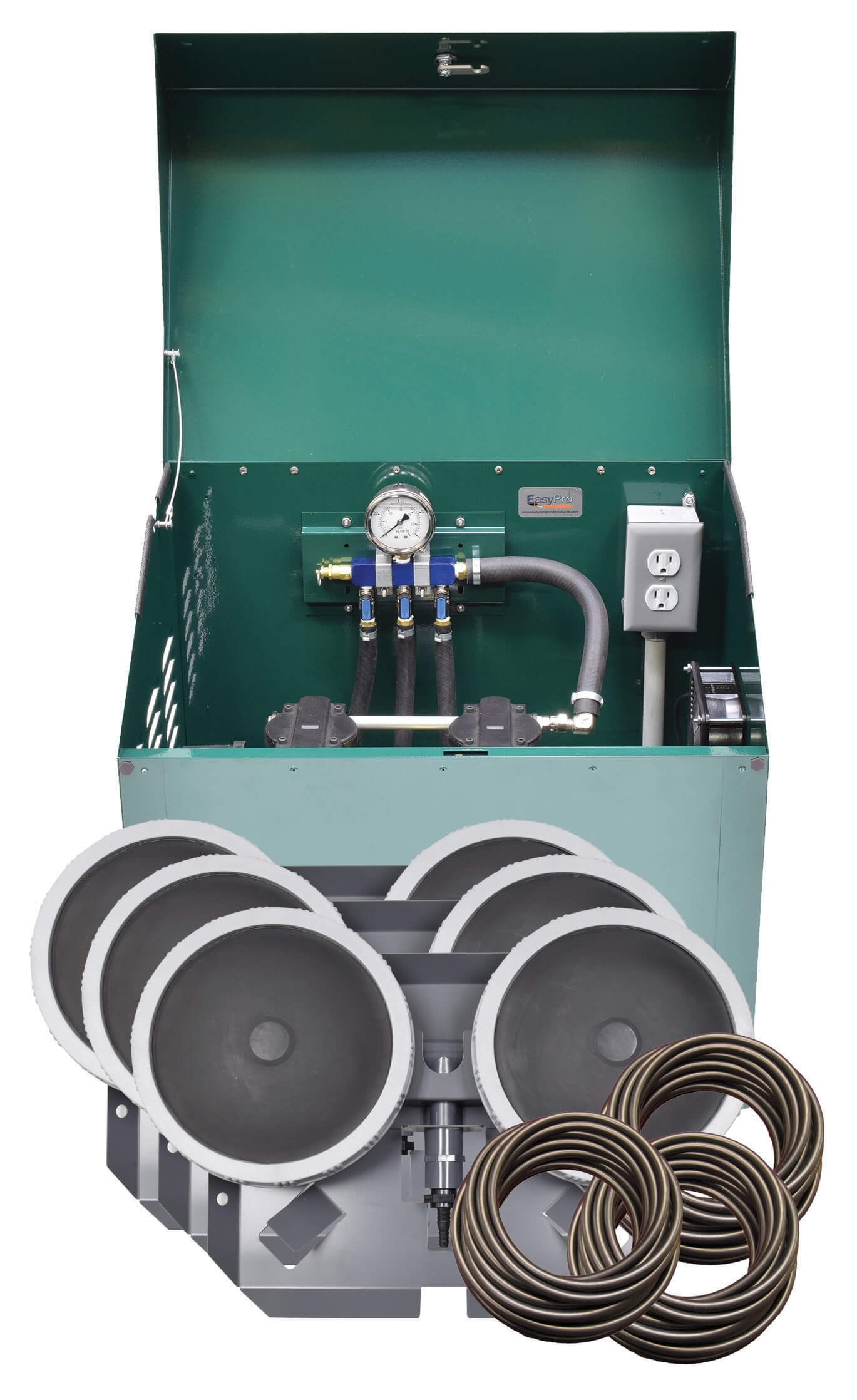

PA83D Sentinel Deluxe System (Ground Cabinet) features:
- SRC34SS Stratus™ SRC 3/4 hp Air Compressor with Sound Shield™ pre-installed
- SC22 Deluxe 22″ Ground Mount Locking Cabinet
- Cabinet hardware
- Noise reducing foam pre-installed
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
- 300′ of 3/8″ QuickSink weighted tubing with fittings for connections
- Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary.
- 2-Year Warranty on Compressor, 5-Year Warranty on Tubing, Diffusers and Cabinet.
