Description
Aeration system for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rocking Piston SRC25 compressor, 2.3 cfm, 1.7 amps, aerates up to 50′ deep. The PA34-2 kit also includes two QS1 Quick Sink air diffusers and dual valved outlet assembly with pressure relief valve – kit does not include tubing, order 3/8″ tubing (weighted or unweighted) as needed. PA34-2 is ideal for aerating long, narrow ponds or two small ponds with one compressor.
This system will effectively aerate:
- 1/2 Acre Pond at 5'-8' Deep
- 1 Acre Pond at 8'-12' Deep
- 2 Acre Pond at 12'-16' Deep

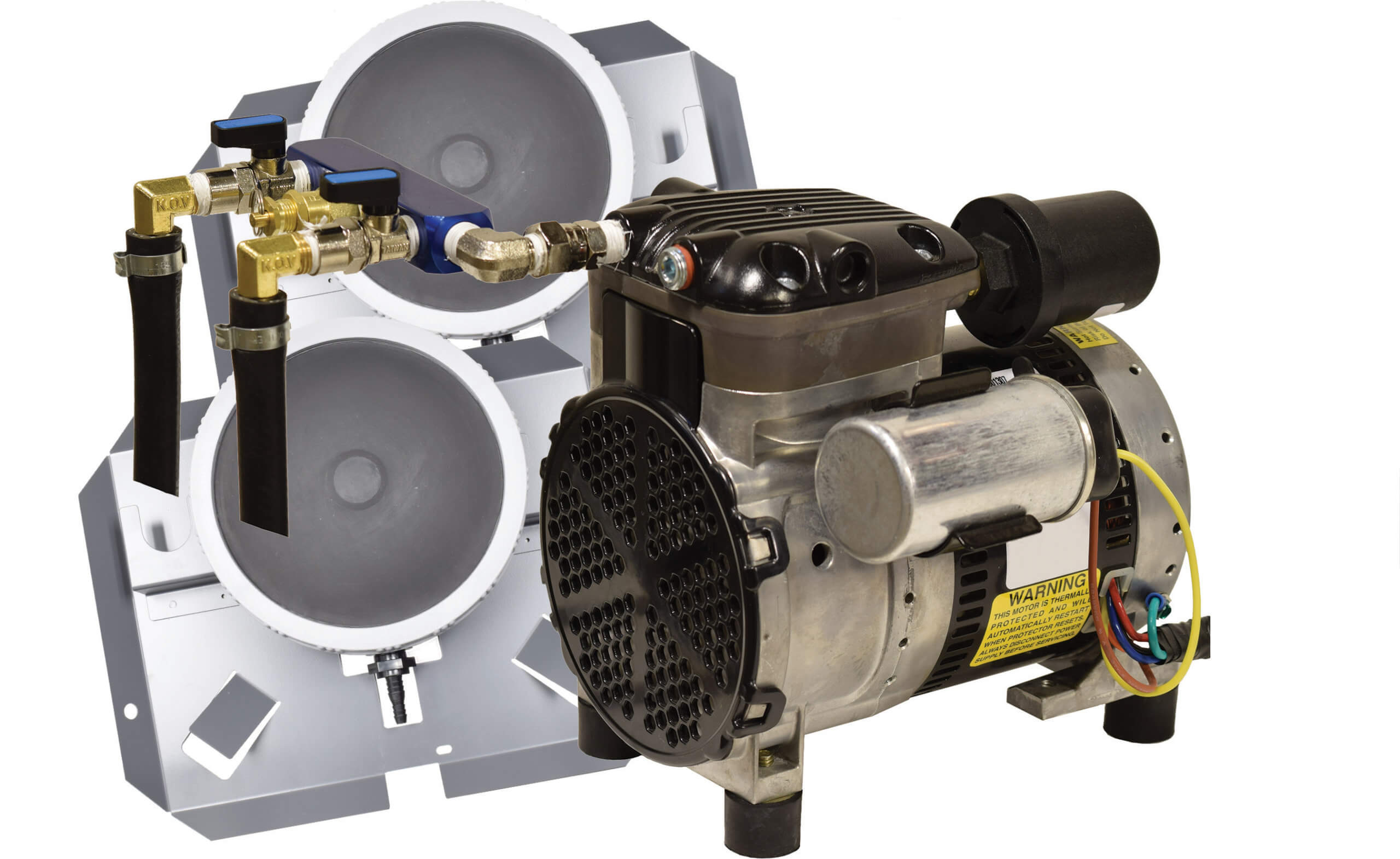

PA34-2 (No Cabinet) features:
- 1/4 hp Stratus SRC25 Gen 2 compressor with two year warranty
- Two valve manifold with pressure relief
- Valved outlet with heat reducing hose and 3/8″ connections
- Two QS1 Quick Sink self weighted single head air diffusers
- Purchase tubing separately (Weighted Aeration Tubing can be found by clicking HERE)
- Approximately 1.1 cfm of air flow per diffuser
- Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary
- PA34-2 requires weather protection for the compressor (Available for purchase with cabinet, or without. If you choose the system without cabinet, you will need to provide your own protective housing to shield the compressor from the weather.)
- 2-Year Warranty on Compressor, 5-Year Warranty on Tubing and Diffuser

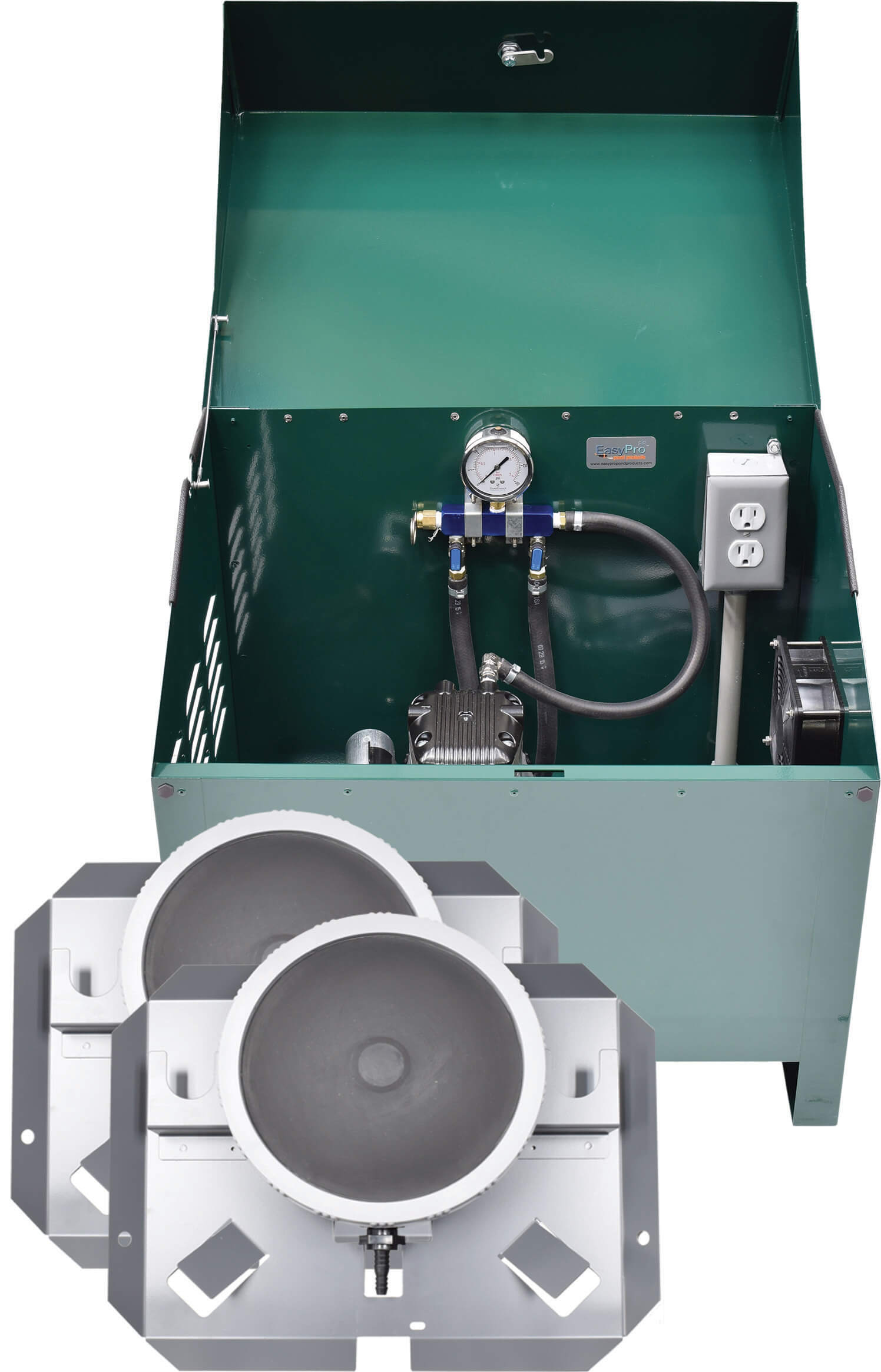

PA34-2D Sentinel Deluxe System (Ground Cabinet) features:
- SRC25SS Stratus™ SRC 1/4 hp Air Compressor with Sound Shield™ pre-installed
- SC22 Deluxe 22″ Ground Mount Locking Cabinet
- Cabinet hardware
- Noise reducing foam pre-installed
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- QS1 QuickSink Weighted Diffuser (single head)
- Purchase tubing separately (Weighted Aeration Tubing can be found by clicking HERE)
- Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary.
- 2-Year Warranty on Compressor, 5-Year Warranty on Tubing, Diffusers and Cabinet.

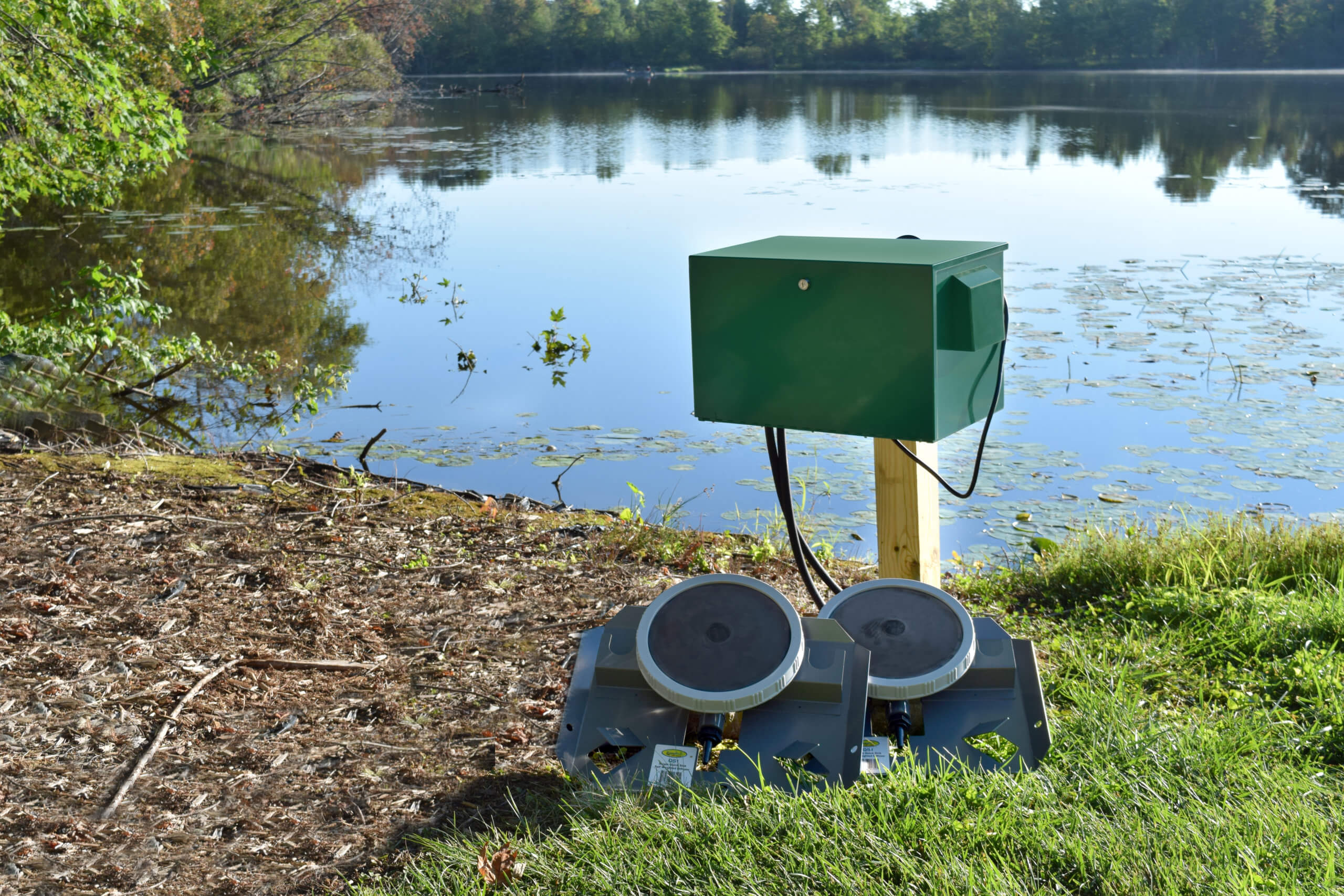

PA34-2DP Sentinel Deluxe System (Post Mount OR Ground Mount Cabinet) features:
- SRC25SS Stratus™ SRC 1/4 hp Air Compressor with Sound Shield™ pre-installed
- SC18 Deluxe 18″ Locking Cabinet that can be post or ground mounted – with noise reducing foam pre-installed
- Cabinet hardware for either post mounted OR ground mounted cabinet placement!
- Valved outlet assembly pre-installed
- Pressure gauge pre-installed
- Pressure relief valve pre-installed
- Cooling fan pre-installed
- Electrical box/outlet pre-installed and ready for your incoming power line
- Heat reducing hose and 3/8″ connections
- Two QS1 QuickSink Weighted Diffusers (single head)
- Purchase tubing separately (Weighted Aeration Tubing can be found by clicking HERE)
- Typical operation cost of $0.40 per 24 hours at .09¢ per kWh, actual cost may vary.
- 2-Year Warranty on Compressor, 5-Year Warranty on Tubing, Diffusers and Cabinet.
