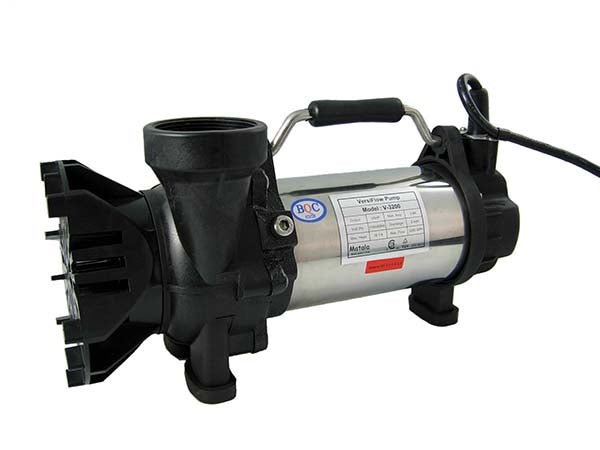

Description
Horizontal design allows use in shallow water applications without overheating! Operates in horizontal or vertical position! Vortex style impeller reduces plugging.
Horizontal design allows use in shallow water applications without overheating!
- Operates in horizontal or vertical position!
- Vortex style intake reduces plugging
- Removable inlet screen prevents large objects from plugging pump
- Continuous duty rated motors
- Energy efficient design reduces operating cost
- Two year warranty
- 115v motor with 2″ outlets and 20′ power cord
MHP32 - 3200 GPH
|
Max Flow
|
3200 gph
|
|
Max Flow at 0′ Head
|
54 gpm
|
|
Max Flow at 5′ Head
|
48 gpm
|
|
Max Flow at 10′ Head
|
34 gpm
|
|
Max Flow at 15′ Head
|
14 gpm
|
|
Max Head
|
19′
|
|
Power Cord
|
20′
|
|
Amps
|
2.8
|
|
Horsepower
|
1/5 hp
|
|
Weight
|
20lbs
|
Dimensions: 13 1/2″ long includes intake strainer x 5 1/2″ wide x 7″ tall
MHP47 - 4700 GPH
|
Max Flow
|
4700 gph
|
|
Max Flow at 0′ Head
|
78 gpm
|
|
Max Flow at 5′ Head
|
71 gpm
|
|
Max Flow at 10′ Head
|
59 gpm
|
|
Max Flow at 15′ Head
|
45 gpm
|
|
Max Flow at 20′ Head
|
30 gpm
|
|
Max Flow at 25′ Head
|
11 gpm
|
|
Max Head
|
37′
|
|
Power Cord
|
20′
|
|
Amps
|
5.3
|
|
Horsepower
|
1/2 hp
|
|
Weight
|
27lbs
|
Dimensions: 15″ long includes intake strainer x 6 1/2″ wide x 7″ tall
MHP56 - 5600 GPH
|
Max Flow
|
5600 gph
|
|
Max Flow at 0′ Head
|
93 gpm
|
|
Max Flow at 5′ Head
|
91 gpm
|
|
Max Flow at 10′ Head
|
90 gpm
|
|
Max Flow at 15′ Head
|
84 gpm
|
|
Max Flow at 20′ Head
|
68 gpm
|
|
Max Flow at 25′ Head
|
51 gpm
|
|
Max Flow at 30′ Head
|
29 gpm
|
|
Max Head
|
30′
|
|
Power Cord
|
20′
|
|
Amps
|
7.3
|
|
Horsepower
|
1 hp
|
|
Weight
|
30lbs
|
Dimensions: 16″ long includes intake strainer x 6 1/2″ wide x 7″ tall
