Description

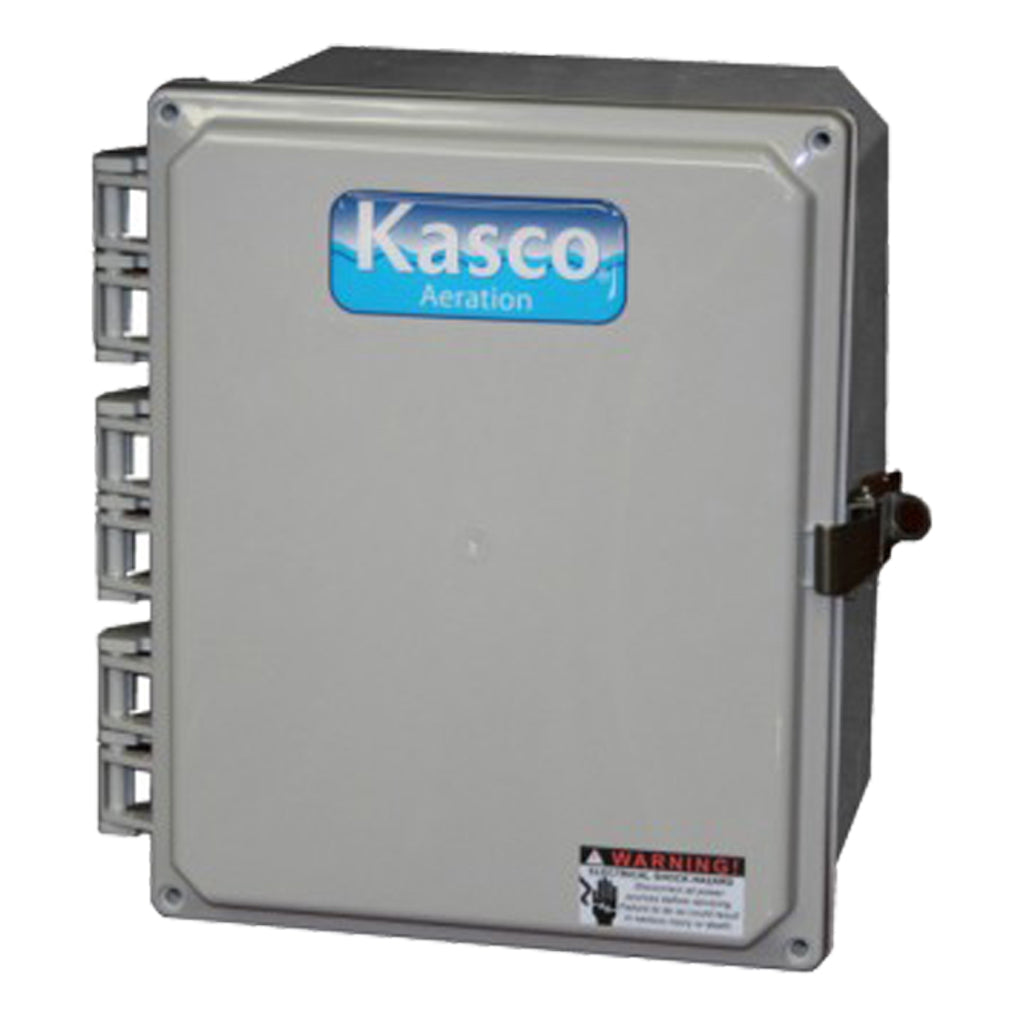

Kasco® Fountain Control Panels will deliver the performance and safety you need to get the most from your Kasco® Fountain, Aerator or Circulator. Whether you’re looking for a replacement or an upgrade, we have the right control panel for you. Each controller is designed to control ONE unit. All controllers are UL listed.
Technical Specifications
C-25
A plug-and-go GFCI protected control panel with 24-hour timer and a photocell controlled outlet for optional lighting.
- 120-Volt
- Single Phase
- 15-Amp
C-85
A 20-Amp control panel featuring GFCI protection, a 24-hour timer for unit control and a second 24-hour timer for optional lighting control. Surge protection and a terminal block for hardwiring the equipment are included, all in a thermoplastic NEMA 3r/4x enclosure. The C-85 Control Panel requires a hard-wire connection to four leads (L1, L2, a neutral, and a ground) and must be installed by a qualified electrician.
- 240-Volt
- Single Phase
- 20-Amp
CA-220
The C-220 control panel works exclusively with our 3/4, 1 and 2 hp 240-Volt surface aerators and allows you to easily control when your unit turns on and off. This control panel is a less expensive option as it does not control unit lighting. This UL listed, 20-Amp control panel features GFCI protection, 24-hour timer and field terminal connections for incoming power and aerator wiring, all inside a durable thermoplastic enclosure. If you wish to control unit lighting, see our C-85 control panels.
- 240-Volt
- 20-Amp
- For use with 3/4, 1 and 2 hp, 240-Volt surface aerators
CA-230
The new C-230 control panel works exclusively with our 3 and 5 hp, 240-Volt surface aerators and allows you to easily control when your unit turns on and off. This control panel is a less expensive option as it does not control unit lighting. This UL listed, 30-Amp control panel features GFCI protection, 24-hour timer and field terminal connections for incoming power and aerator wiring, all inside a durable thermoplastic enclosure. If you wish to control unit lighting, see our C-95 control panels.
- 240-Volt
- 30-Amp
- For use with 3 and 5HP, 240-Volt surface aerators
