Description
Robust-Aire™ RA1 are highly efficient, reliable, and durable aeration systems that induce oxygen transfer, beneficial water movement, and mixing to ponds up to 1.5 Acres, 8- to 50-feet deep.

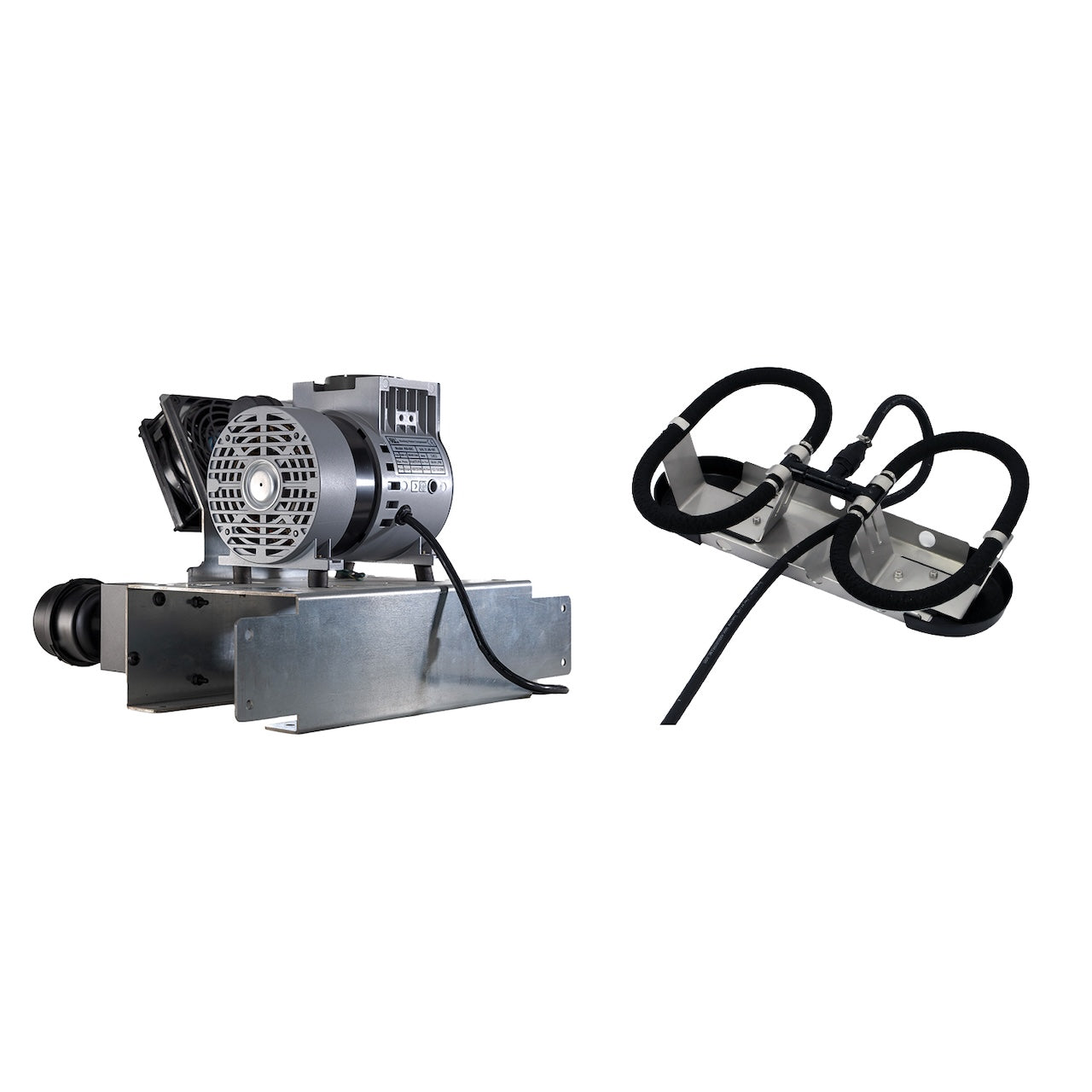

- 1/4 hp single-piston Teich-Aire™ compressor

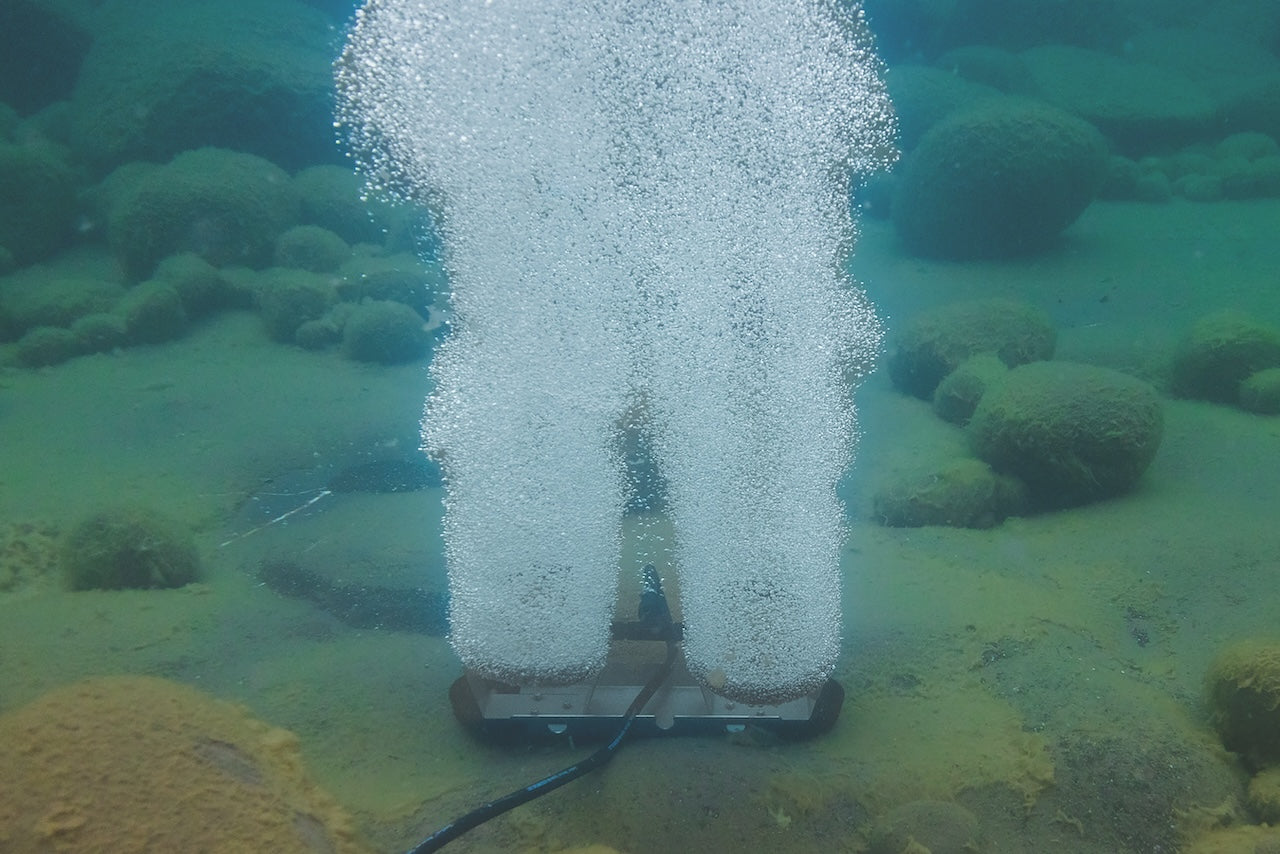

- One diffuser assembly
- 100 ft roll of 3/8" ID Self-Weighted Aerator Supply Line
- Quiet operation; 70dB without a cabinet (air conditioner), 65 with cabinet (normal conversation)
- No electricity in the water
- No equipment floating on or near the surface
- Designed and built for continuous operation
- Low maintenance rocking-piston compressor
- Compressor Cabinet can be remotely installed
Base Mount Cabinet

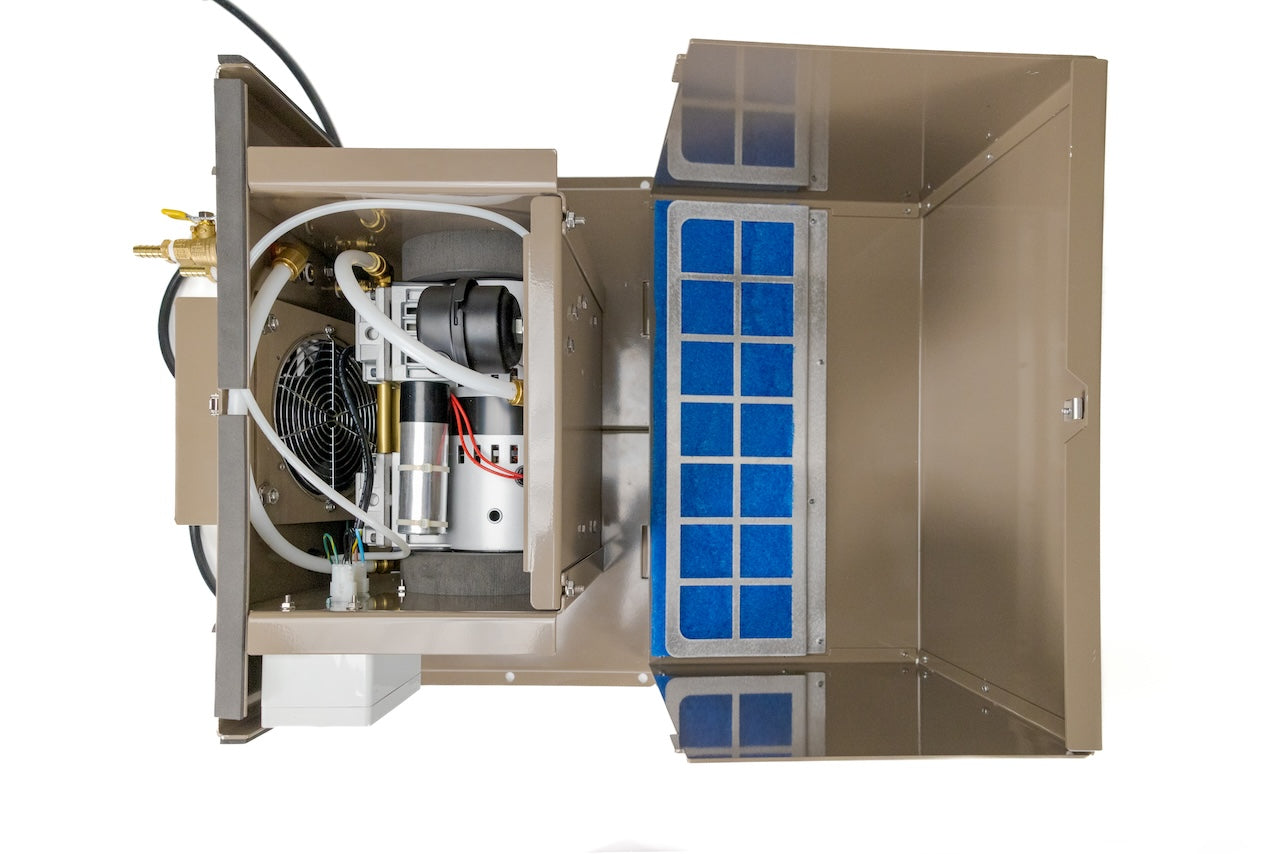

The compressor can be on the ground with access to ventilation from below. The powder-coated aluminum cabinet includes a cooling fan that provides 110 CFM ventilation, acoustical foam, key lock, and 120-V receptacle or a 240-V junction box. Dimensions are 22 7/16" L x 16 15/16" W x 13 3/8" H. Base Mount Cabinets ship motor freight only.

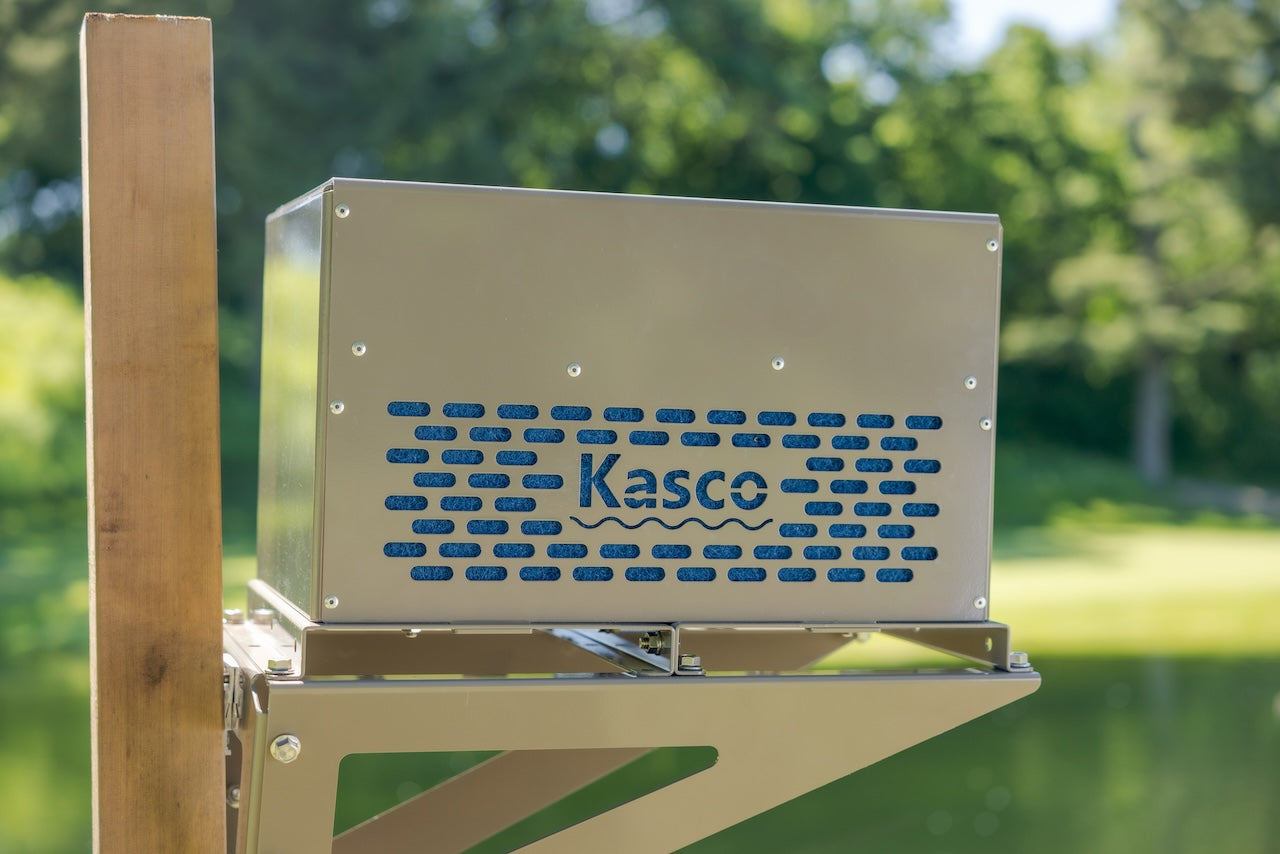

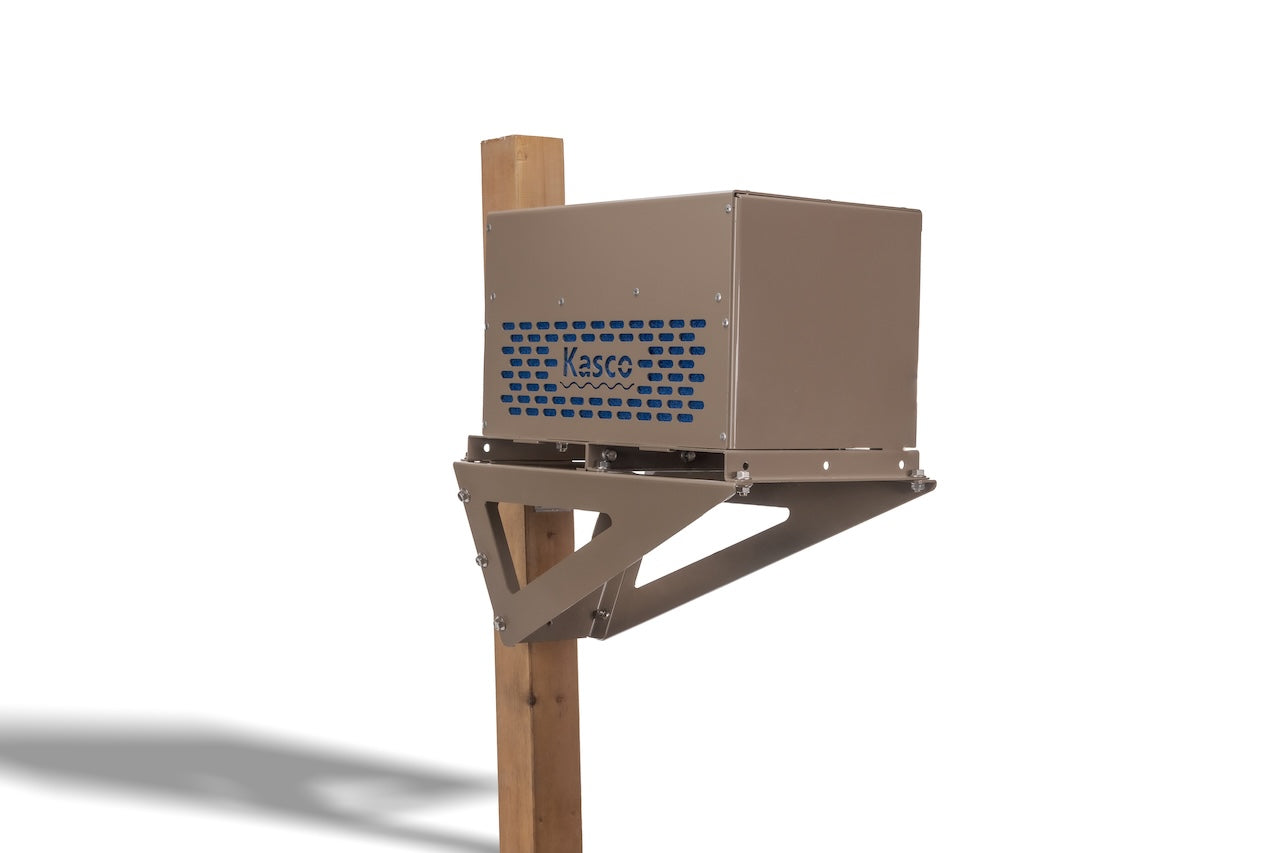

*NOTE: Add the optional "Post Mount Bracket Kit" to mount the small aeration cabinet to a 4x4 wooden post.
