Vertex® Air4 XL4

  • $4,256.00


The Vertex® Air 4 XL4™ Aeration Systems are extremely efficient. The rising force of millions of bubbles transport bottom water to the surface, allowing oxygen to be absorbed as well as circulating and mixing the water column.

The Air 4 XL4™ Aeration systems are ideal for ponds up 6-9  surface acres and 45 ft deep depending on the shape slope and oxygen demand. The XL4 AirStation™ is specially designed to aerate ponds 20ft or deeper.

Available in 115 or 230 volts.

  • Circulates up to 30,500 GPM (gallons per minute)
  • High pumping rate easily penetrates stratification layers
  • Promotes beneficial bacteria growth
  • Prevents low oxygen fish kills
  • Reduces nutrients levels and associated algae growth
  • Decreases pond bottom sediment
  • Expands oxygenated habitat for improved fisheries
  • Lessens aquatic midge and mosquito insect hatches
  • Eliminates foul odors from undesirable dissolved gases
  • Equipped with a stamped ventilator grill
  • Built for continuous 24/7 operation
  • 8.6 CFM output
  • Thermal overload protection
  • Air Station Diffusers are made of EPMD compound with 100% rebound memory, they are clog-resistant even in the dirtiest water bodies



Technical Specifications

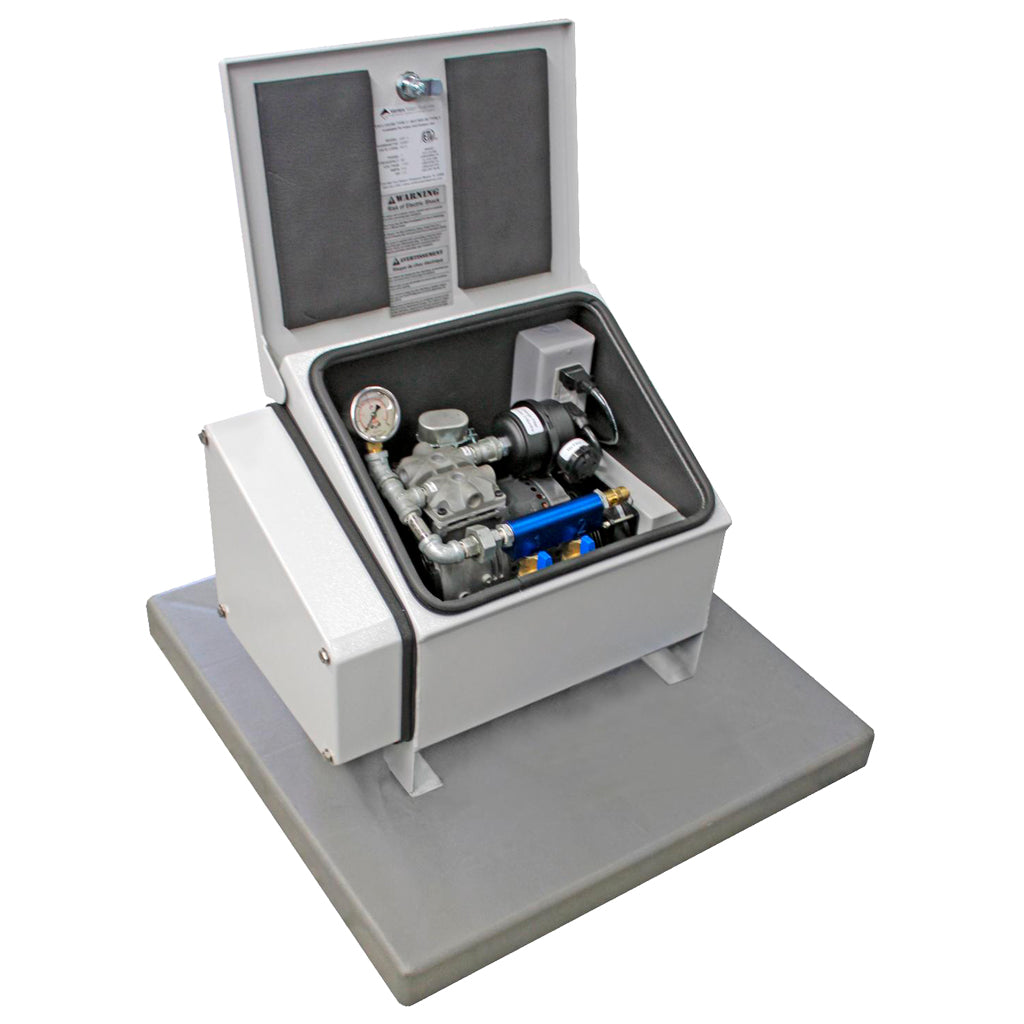

The Vertex® Air 4 XL4™ Aeration System comes complete with:

Two 1/2 HP Dual Piston Brookwood® Compressors

Powder Coated, Aluminum Cabinet

Two High Capacity 290 CFM Cooling Fan

Heavy-Duty Cabinet Mounting Pad

Class "A" G.F.C.I. Protection on Compressor and Fan Circuits

Four, XL4 CoActive Air Station with four head, self-cleaning, clog-resistant membrane diffusers, specially designed for deeper water.

Four-valved aluminum control manifold

Industry Leading 3 Year Compressor, 5 Year Air-Station/Diffuser, and Lifetime Aluminum Cabinet Manufacturer's Warranty.

Optional Sound Reduction Kits are available for this system for whisper-quiet operation.  Vertex® aeration systems are the quietest systems available. A sound reduction kit is not needed unless the system will be placed within a sensitive area.
